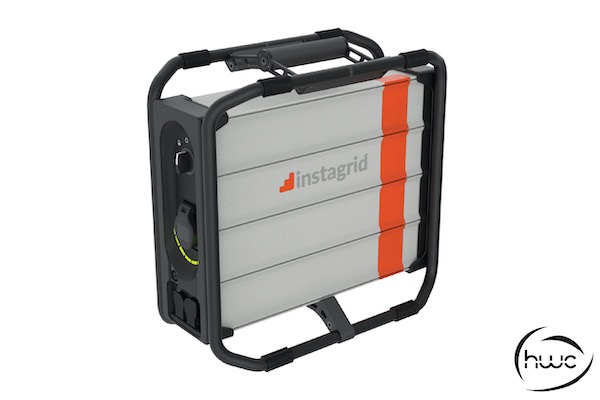

Portable Battery

Portable power supply? That used to be a thing of the past, but not anymore. Compact, lightweight and very environment friendly. The ideal replacement of the old fossil fuel powered generator. No noise, no fumes, no emission. This mobile power system can be taken where-ever you decide to go. It's lightweight and thus can be transported to any event, recording or other project that needs a reliable power supply.

How does it work?

In the past the only option to get power to a site that didn't have a power supply available was with the use of a noisy generator. With the introduction of this new power pack, this all belong to the past. Where a regular generator generates power with the help of a fossil fuelled powered engine, this battery system stores power into it's internal battery when being charged at any power supply. After charging the device, the power is off-grid available for all your purposes. This, without the noise or fumes of a regular generator. This is better for the environment. Other than that, this portable power pack is so compact that you can lift it up and reposition it in a jiffy. A regular generator weighs around the 60 KG. This mobile power supply however only 19 KG. A huge benefit for the technicians, gaffers and other event crew having to work with the device. Are you looking to use the powerpack multiple times? Then re-charging it is recommendable. Charging up to 50% takes about 1,5 hours. Charging until the full capacity takes around 5 hours.

Technical Features Portable Battery Pack

Do you need off-grid power for audiovisual equipment? Back in the days you always had to arrange a stabilised generator. With a non-stabilised generator the equipment could have been damaged. All this belongs to the past with the use of the portable battery pack. The power supplied by this battery is very constant and even of higher quality than your regular venue outlet. The mobile power supply can deliver 3600 Watts continuously, but can also handle peaks of 18.000 Watts. When looking at the peak power of the battery, you can use 5400 up to 300 seconds, 7200 Watts up to 120 seconds and 9000 Watts up to 30 seconds. A question that may be of more importance to you is, 'how long the portable power supply lasts on a full battery?'. Our portable batteries deliver an output of 2.1 kWh. This means that you can use 2100 Watts for an hour before the battery is empty. Are you using 1050 Watts continuously, then this would be 2 hours. This portable power supply can be used in any type of weather condition. Rain, snow, hail or wind. With the IP54 rating, this off-grid battery is up to the job. Curious whether this mobile power supply is suitable for your project? Contact us for more information.

Tech specs

• Brand

  Instagrid

• Type

  One MAX

• Continuous Power Output

  3600 Watts

• Peak Power Output

  5400 Watts (300 sec) - 7200 Watts (120 sec) - 9000 Watts (30 sec)

• Capacity

  2.1 kWh

• Safety Rating

  IP54

• Charging Time

  5 hours

• Connections

  1x Schuko + 1x PowerCON TRUE1

• Weight

  19 KG

• Dimensions

  40 x 20 x 42 cm (L x W x H)
